Epoxy coated steel tanks adopt high-strength steel plates with two different functional coatings. The inner media-contact surface adopts epoxy coating for powerful anti-corrosion performance, while the outer surface is treated with polyester coating to resist UV radiation and outdoor aging. With great chemical inertness, they resist acid, alkali, salt and humid erosion. The modular bolted structure enables flexible arrangement, easy expansion and low maintenance, delivering long-term stable operation for industrial liquid storage, wastewater treatment and conventional water storage.
Internal coating-Thermoset resin fusion bonded epoxy
| Application | Test | Result |
| Dry Film Thickness | Non-Destructive Test | FBE-V1100: Minimum 8 mils/ 200 microns FBE-V1500: Minimum 12 mils/300 microns |
| Hot Water lmmersion, 70℃ | GB/T1733 | Meets or exceeds industry norms |
| Adhesion | GB/T5210 | ≥12/ 16 /16 MPa |
| Corrosion Resistance | Salty Spray GB/T 1771 | 2mm creep from scribe at 1000 Hrs/2000 Hrs/4000 Hrs |
| Impact Resistance | GB/T 20624.2 | ≥18J |
| PH Range | - | 3-13 |
| Abrasion Resistance | Abrasion wheel GB/T1768 | CS-17, 1000 cycles <40mg |
| Hardness | GB/T 6739 | 2H |
| Chemical lmmersion | 50% NaOH, 50% H2S04 | Meets or exceeds industry norms |
| Holiday Test | 900v/1100v/1500v every panel | Discontinuity free (Zero defects at test voltage) |
External Coating-Ultra durable polyester
| Application | Test | Result |
| Dry Film Thickness | Non-Destructive Test | Minimum 3 mils/80 microns |
| Weathering Resistance | GB/T1865 | 1000 Hrs no change |
| Adhesion | GB/T5210 | ≥12/ 16 /16 MPa |

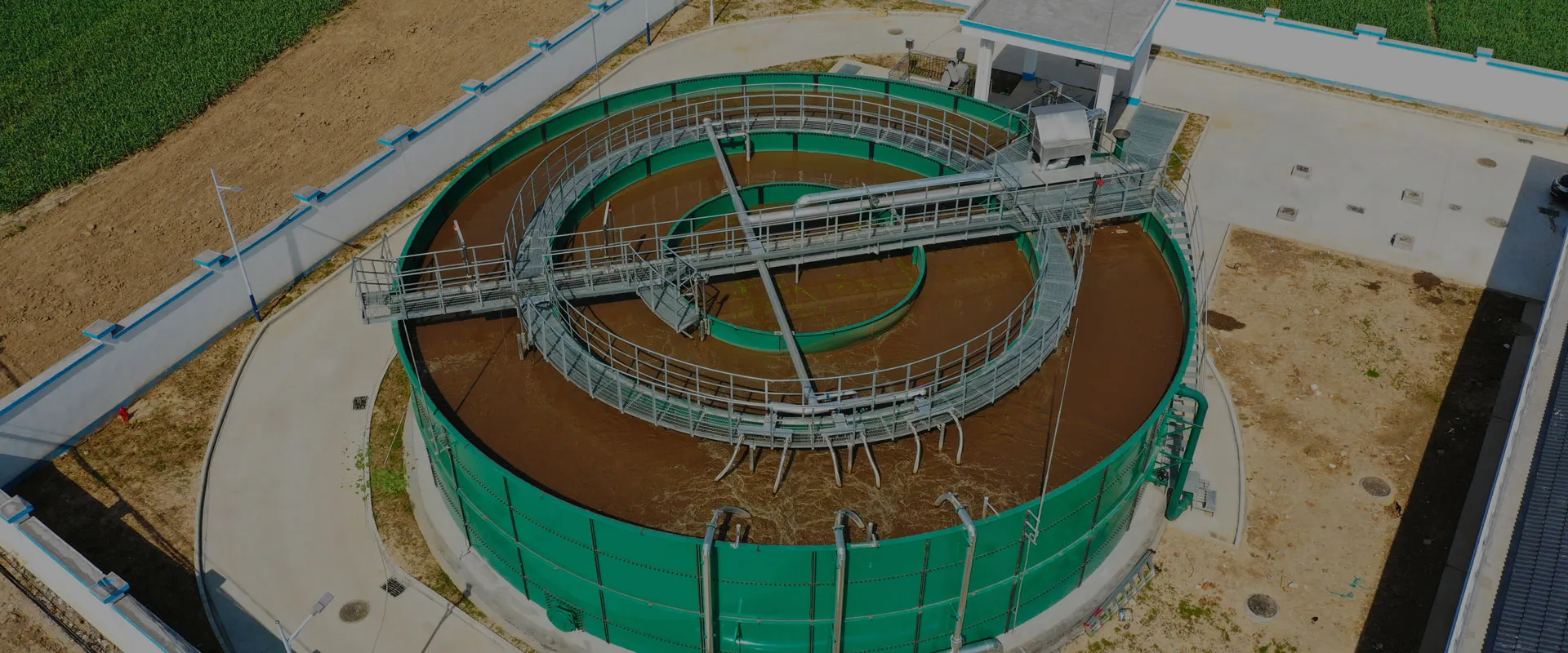

Construction begins with on-site bolted panel assembly and sealing. After installing the roof and dedicated tank accessories, leakage and structural tests are performed to verify product quality. The advanced modular design enables fast, efficient installation and allows for easy future expansion or relocation as needed.

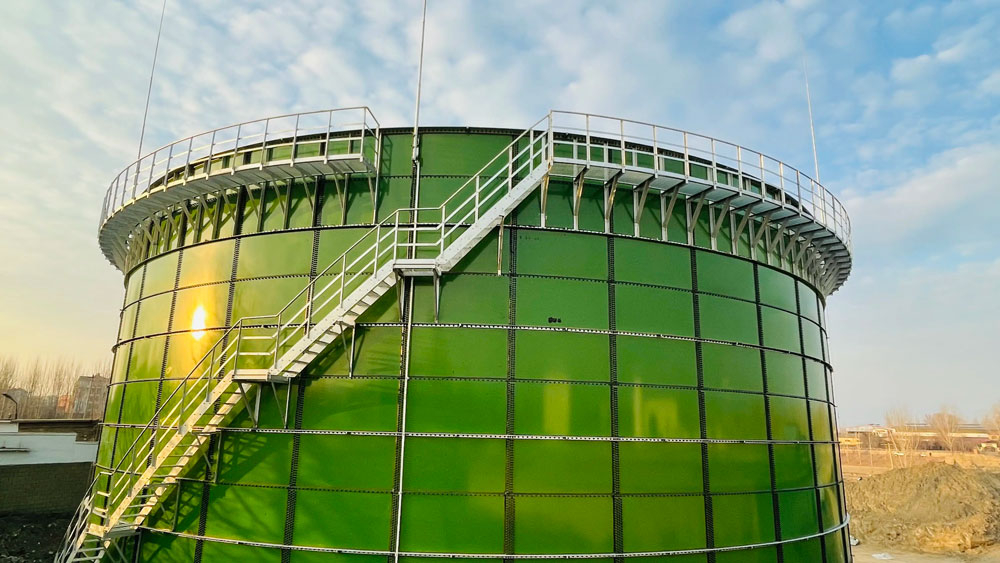

Excellent acid and alkali corrosion resistance.
Modular design for fast installation and easy expansion.
Smooth and hygienic surface, suitable for potable water.
Low maintenance, no repainting required.
High structural strength, weather and earthquake resistant.

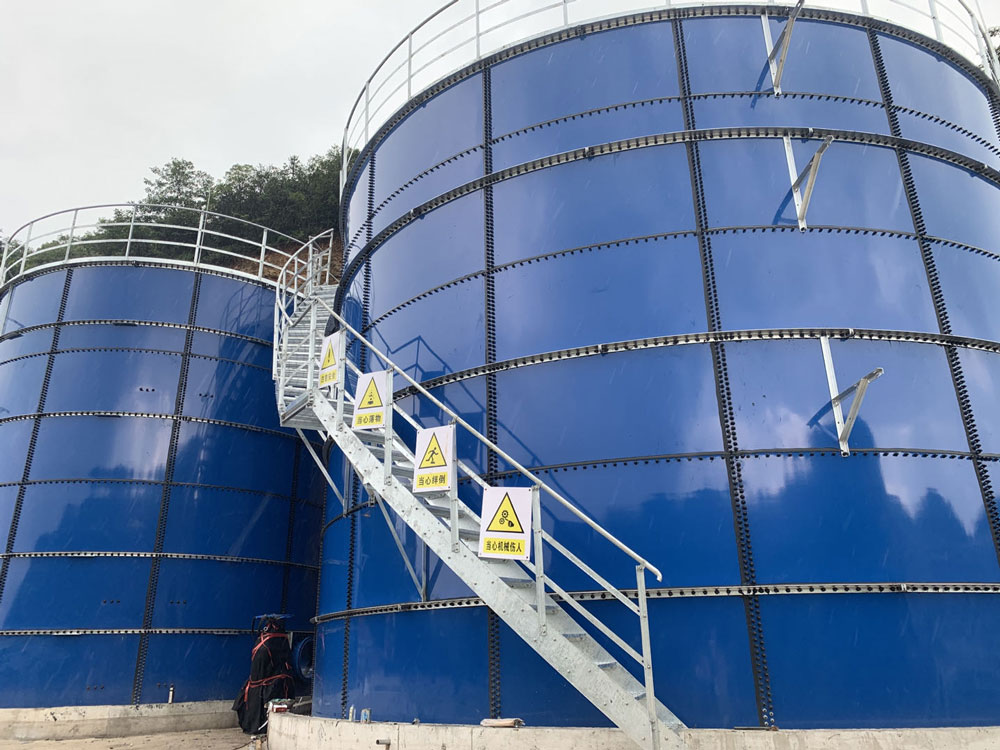

Municipal & industrial wastewater treatment.
Water storage, biogas and environmental protection projects.
Industrial circulating water and process liquid storage.
